SHEAR SPEEDSTER - DIMENSIONS
COMMISSION BUILT SPECIALTY CARS TAILOR- MADE FOR EACH INDIVIDUAL |
This page is still under construction .

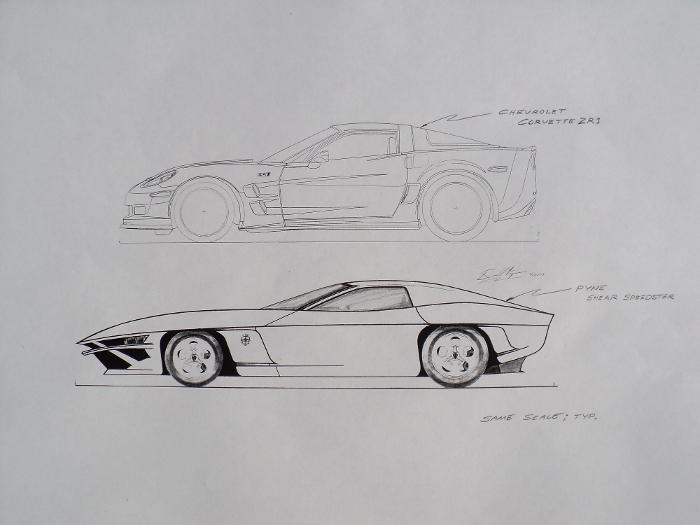

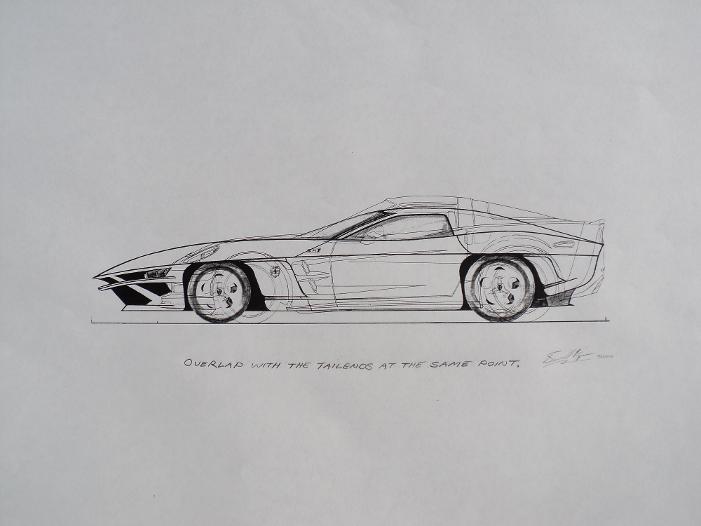

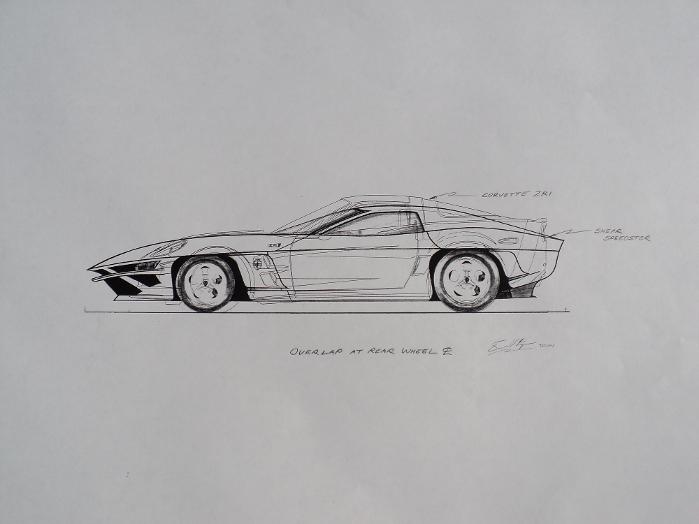

BELOW IS A SIZE COMPARISON OF SHEAR SPEEDSTER TO A CORVETTE ZR1
SHEAR SPEEDSTER IS COMPLETELY DIFFERENT CAR WITH A SIMILAR PROFILE, IT IS NOT A RE-BODIED CORVETTE.
OPTIONAL BODY STYLES AVAILIBLE
Unlimited custom lower side panels
(still using the same upper body mold)
Notice custom lower side wing.
Extreme channeled Hot Rod version
MANY MORE POSSIBILITIES AVAILABLE.
BODY and CHASSIS - PRODUCTION STAGES AVAILABLE
STAGE 1 -HAND LAID FIBERGLASS / VINYLESTER RESIN
BODY CONSTRUCTION
STAGE 2 -VACUUM MOLDED FIBERGLASS with CARBON FIBER REINFORCEMENTS / VINYLESTER RESIN
STAGE 3 -VACUUM MOLDED CARBON FIBER with CARBON / KEVLAR / FIBERGLASS REINFORCEMENTS / EPOXY RESIN possible use of nano tube technology
* UNLIMITED PAINT COLORS AVAILABLE - Base Coat/ Clear Coat
* CLEAR COAT over CARBON / CLEAR EPOXY GELCOAT AVAILABLE
* SPRAY CHROME AVAILABLE , optional tinted clear candy
CHASSIS CONSTRUCTION
STAGE 1 - TUBE STEEL (WELDED)
STAGE 2 - ALUMINUM MONOQUE TUB (BONDED, RIVETED)
STAGE 3 - VACUUM MOLDED CARBON FIBER / KEVLAR / FIBERGLASS MONOQUE TUB with EPOXY NANO TUBE RESIN
LENGTH ....................................204"
HEIGHT ......................................46"
WIDTH ........................................81.5"
GROUND CLEARANCE ..........5"
ENGINE - Multiple options available for any stage ( Engine compartment is large enough for a V16 )
STAGE 1 - FORD 302,351,400,460 / GM 350,454 / DODGE, VIPER V10 Rebuilt / Blueprinted or = > Crate Engine FRONT ENGINE, REAR WHEEL DRIVE
STAGE 2 - FWD. Inline 4 cyd or V6 + RWD. V10
STAGE 3 - FWD. I-4 / V6 + RWD. V10 with RWD. ELECTRIC MOTOR / GENERATOR w/ LITHIUM BATTERY PACK
STAGE 4 - RWD. V12 + FWD. ELECTRIC MOTOR / GENERATOR w/ LITHIUM BATTERY PACK
WHEEL BASE .......................... 110"
TRACK F/R ...................
TIRE SIZE F/R ...............
CURB WEIGHT...............goal 2800 lbs.......max. 3400 lbs.
WEIGHT DIST................no driver.....52% front / 48% rear
SUSPENSION
FRONT : ........ INDEPENDENT UNEQUAL LENGTH A - ARMS w/ COIL OVER ADJUSTABLE SHOCKS, ANTI-SWAY BAR, ANTI-DIVE.
REAR : ......... INDEPENDENT UNEQUAL LENGTH A - ARMS w/ COIL OVER ADJUSTABLE SHOCKS, ANTI-SWAY BAR, ANTI- SQUAT.
WHEELS
FRONT : .......PREMIUM ALLOY 18"
REAR : .........PREMIUM ALLOY 20"
STEERING.....................................POWER ASSIST RACK and PINION
STEERING RATIO..........................
STEERING WHEEL DIAMETER......14"
TURNS, Lock to Lock.....................2.5
TURNING CIRCLE..........................
SEATS
SEATING CAPACITY .......... 2
STAGE 1 - STOCK, RACING, or MULTIPLE OPTIONS
STAGE 2 - CUSTOM 10 Way POWER, Leather,suede,fabric,vinyl or combination / Stage 1
STAGE 3 - Stage 1 or Stage 2
GENERAL DATA
STANDARD EQUIPMENT : Tinted Safety Glass, To be continued...
